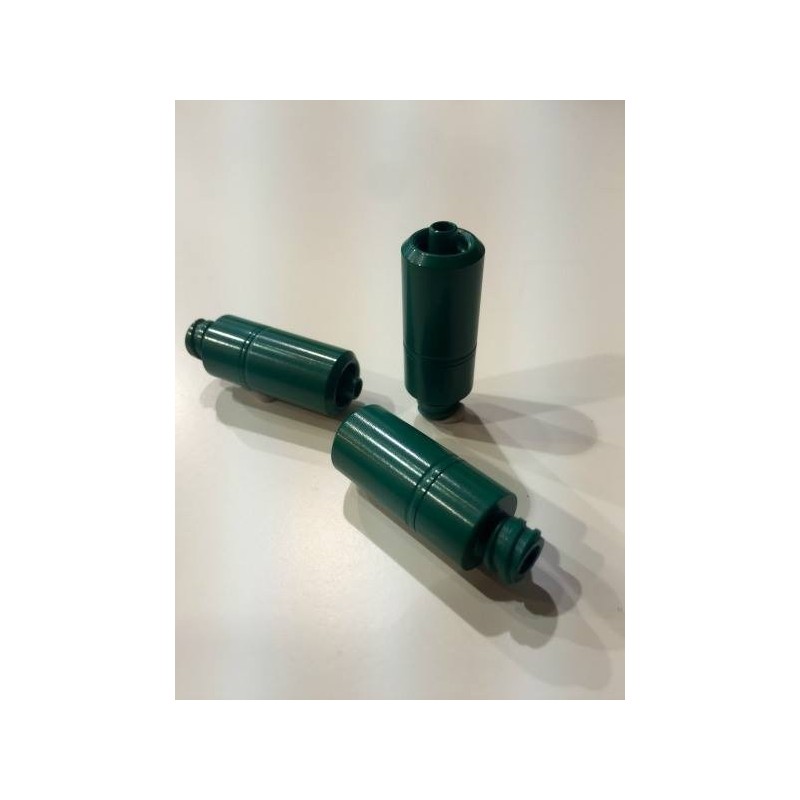

cleanvalve-X PPSU

Dispensing valve to avoid disturbing dripping or leaking of a media

With this variant the closing element is mounted against the flow direction. The valve opens with partial or complete release of the flow duct through a lateral magnetic field (i.e an external approaching magnet). It closes automatically when the magnetic field is reduced or eliminated (i.e. while removing the external magnet).

• Valve type NC: normally closed
• Housing material: Polyarylsulfone (PPSU) green, Sealing: Sylgard 184
• Connection type: Luer-lock both sides
• Inner duct diameter: 2mm
• Reduced dead space volume
• Permitted media temperature: max. 60°C (higher temperatures upon request)
• Permitted operating temperature: 10-60°C
• Dimensions: length: 32mm / diameter: 12mm
• useable with manual dispense head dispelligence M
